In the previous article: Typecho Blog Script Backup and Restore, it was mentioned how to use scripts to regularly back up the website database. Today, I will share how to use Rclone to automatically sync the backed-up data to Google Drive or Alibaba Cloud OSS and other S3 storage.
1. Install Rclone#
Log in to the server terminal and execute the command below:
curl https://rclone.org/install.sh | sudo bash
If curl has not been installed before, please execute the command below to complete the installation:
yum -y install curl
2. Configure Rclone#
After successful installation, enter:
rclone config
The following operation commands will pop up, just follow the prompts:
2021/05/09 12:48:01 NOTICE: Config file "/root/.config/rclone/rclone.conf" not found - using defaults
No remotes found - make a new one
n) New remote
s) Set configuration password
q) Quit config
Enter n to create a new one, customize the name, and the storage to connect will pop up:
name> Alibaba
Type of storage to configure.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
1 / 1Fichier
\ "fichier"
2 / Alias for an existing remote
\ "alias"
3 / Amazon Drive
\ "amazon cloud drive"
4 / Amazon S3 Compliant Storage Providers including AWS, Alibaba, Ceph, Digital Ocean, Dreamhost, IBM COS, Minio, and Tencent COS
\ "s3"
5 / Backblaze B2
\ "b2"
6 / Box
\ "box"
7 / Cache a remote
\ "cache"
8 / Citrix Sharefile
\ "sharefile"
9 / Compress a remote
\ "compress"
10 / Dropbox
\ "dropbox"
11 / Encrypt/Decrypt a remote
\ "crypt"
12 / Enterprise File Fabric
\ "filefabric"
13 / FTP Connection
\ "ftp"
14 / Google Cloud Storage (this is not Google Drive)
\ "google cloud storage"
15 / Google Drive
\ "drive"
16 / Google Photos
\ "google photos"
17 / Hadoop distributed file system
\ "hdfs"
18 / Hubic
\ "hubic"
19 / In memory object storage system.
\ "memory"
20 / Jottacloud
\ "jottacloud"
21 / Koofr
\ "koofr"
22 / Local Disk
\ "local"
23 / Mail.ru Cloud
\ "mailru"
24 / Mega
\ "mega"
25 / Microsoft Azure Blob Storage
\ "azureblob"
26 / Microsoft OneDrive
\ "onedrive"
27 / OpenDrive
\ "opendrive"
28 / OpenStack Swift (Rackspace Cloud Files, Memset Memstore, OVH)
\ "swift"
29 / Pcloud
\ "pcloud"
30 / Put.io
\ "putio"
31 / QingCloud Object Storage
\ "qingstor"
32 / SSH/SFTP Connection
\ "sftp"
33 / Sugarsync
\ "sugarsync"
34 / Tardigrade Decentralized Cloud Storage
\ "tardigrade"
35 / Transparently chunk/split large files
\ "chunker"
36 / Union merges the contents of several upstream fs
\ "union"
37 / Webdav
\ "webdav"
38 / Yandex Disk
\ "yandex"
39 / Zoho
\ "zoho"
40 / http Connection
\ "http"
41 / premiumize.me
\ "premiumizeme"
42 / seafile
\ "seafile"
Taking Alibaba Cloud OSS as an example, enter 4 in the terminal, then choose 2, and follow the prompts:
Storage> 4
** See help for s3 backend at: https://rclone.org/s3/ **
Choose your S3 provider.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
1 / Amazon Web Services (AWS) S3
\ "AWS"
2 / Alibaba Cloud Object Storage System (OSS) formerly Aliyun
\ "Alibaba"
3 / Ceph Object Storage
\ "Ceph"
4 / Digital Ocean Spaces
\ "DigitalOcean"
5 / Dreamhost DreamObjects
\ "Dreamhost"
6 / IBM COS S3
\ "IBMCOS"
7 / Minio Object Storage
\ "Minio"
8 / Netease Object Storage (NOS)
\ "Netease"
9 / Scaleway Object Storage
\ "Scaleway"
10 / StackPath Object Storage
\ "StackPath"
11 / Tencent Cloud Object Storage (COS)
\ "TencentCOS"
12 / Wasabi Object Storage
\ "Wasabi"
13 / Any other S3 compatible provider
\ "Other"
provider> 2
Get AWS credentials from runtime (environment variables or EC2/ECS meta data if no env vars).
Only applies if access_key_id and secret_access_key is blank.
Enter a boolean value (true or false). Press Enter for the default ("false").
Choose a number from below, or type in your own value
1 / Enter AWS credentials in the next step
\ "false"
2 / Get AWS credentials from the environment (env vars or IAM)
\ "true"
env_auth> 1
AWS Access Key ID.
Leave blank for anonymous access or runtime credentials.
Enter a string value. Press Enter for the default ("").
access_key_id>
AWS Secret Access Key (password)
Leave blank for anonymous access or runtime credentials.
Enter a string value. Press Enter for the default ("").
secret_access_key>
Endpoint for OSS API.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
1 / East China 1 (Hangzhou)
\ "oss-cn-hangzhou.aliyuncs.com"
2 / East China 2 (Shanghai)
\ "oss-cn-shanghai.aliyuncs.com"
3 / North China 1 (Qingdao)
\ "oss-cn-qingdao.aliyuncs.com"
4 / North China 2 (Beijing)
\ "oss-cn-beijing.aliyuncs.com"
5 / North China 3 (Zhangjiakou)
\ "oss-cn-zhangjiakou.aliyuncs.com"
6 / North China 5 (Huhehaote)
\ "oss-cn-huhehaote.aliyuncs.com"
7 / South China 1 (Shenzhen)
\ "oss-cn-shenzhen.aliyuncs.com"
8 / Hong Kong (Hong Kong)
\ "oss-cn-hongkong.aliyuncs.com"
9 / US West 1 (Silicon Valley)
\ "oss-us-west-1.aliyuncs.com"
10 / US East 1 (Virginia)
\ "oss-us-east-1.aliyuncs.com"
11 / Southeast Asia Southeast 1 (Singapore)
\ "oss-ap-southeast-1.aliyuncs.com"
12 / Asia Pacific Southeast 2 (Sydney)
\ "oss-ap-southeast-2.aliyuncs.com"
13 / Southeast Asia Southeast 3 (Kuala Lumpur)
\ "oss-ap-southeast-3.aliyuncs.com"
14 / Asia Pacific Southeast 5 (Jakarta)
\ "oss-ap-southeast-5.aliyuncs.com"
15 / Asia Pacific Northeast 1 (Japan)
\ "oss-ap-northeast-1.aliyuncs.com"
16 / Asia Pacific South 1 (Mumbai)
\ "oss-ap-south-1.aliyuncs.com"
17 / Central Europe 1 (Frankfurt)
\ "oss-eu-central-1.aliyuncs.com"
18 / West Europe (London)
\ "oss-eu-west-1.aliyuncs.com"
19 / Middle East 1 (Dubai)
\ "oss-me-east-1.aliyuncs.com"
endpoint> 8
Canned ACL used when creating buckets and storing or copying objects.
This ACL is used for creating objects and if bucket_acl isn't set, for creating buckets too.
For more info visit https://docs.aws.amazon.com/AmazonS3/latest/dev/acl-overview.html#canned-acl
Note that this ACL is applied when server-side copying objects as S3
doesn't copy the ACL from the source but rather writes a fresh one.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
1 / Owner gets FULL_CONTROL. No one else has access rights (default).
\ "private"
2 / Owner gets FULL_CONTROL. The AllUsers group gets READ access.
\ "public-read"
/ Owner gets FULL_CONTROL. The AllUsers group gets READ and WRITE access.
3 | Granting this on a bucket is generally not recommended.
\ "public-read-write"
4 / Owner gets FULL_CONTROL. The AuthenticatedUsers group gets READ access.
\ "authenticated-read"
/ Object owner gets FULL_CONTROL. Bucket owner gets READ access.
5 | If you specify this canned ACL when creating a bucket, Amazon S3 ignores it.
\ "bucket-owner-read"
/ Both the object owner and the bucket owner get FULL_CONTROL over the object.
6 | If you specify this canned ACL when creating a bucket, Amazon S3 ignores it.
\ "bucket-owner-full-control"
acl> 3
The storage class to use when storing new objects in OSS.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
1 / Default
\ ""
2 / Standard storage class
\ "STANDARD"
3 / Archive storage mode.
\ "GLACIER"
4 / Infrequent access storage mode.
\ "STANDARD_IA"
storage_class>
Edit advanced config? (y/n)
y) Yes
n) No (default)
y/n> n
Remote config
--------------------
[gdrive]
type = s3
provider = Alibaba
env_auth = false
endpoint = oss-cn-hongkong.aliyuncs.com
acl = public-read-write
--------------------
y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d> y
You can see that you need to enter the Alibaba Cloud OSS ID and secret key, you can skip this by pressing enter and edit this part after configuring it in Alibaba Cloud; then follow the prompts to select the Alibaba Cloud OSS node location and read/write permissions, you can refer to the above choices (taking the Hong Kong node and public read/write permissions as an example), if it is another node, just choose the corresponding number.
3. Alibaba Cloud API Configuration#

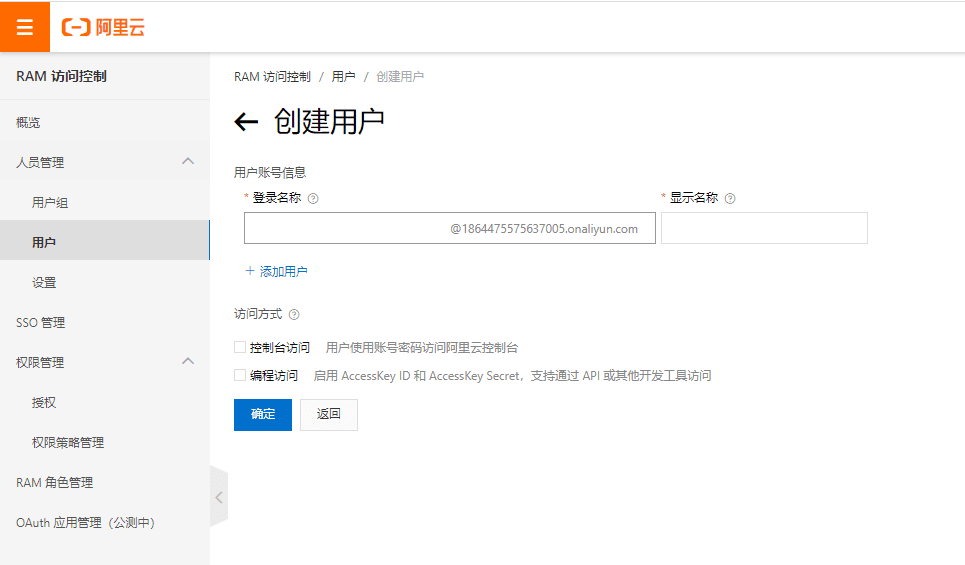

Log in to the Alibaba Cloud website, click on the avatar in the upper right corner, go to Access Control, create a new user, select Programmatic Access, and add AliyunOSSFullAccess permission.
After that, you can obtain the ID and secret key for the Alibaba Cloud OSS service.
4. Continue Configuring Rclone#
Re-enter the rclone config command in the terminal, follow the operation below to enter edit mode, and fill in the Alibaba Cloud OSS ID and secret key.
Current remotes:
Name Type
==== ====
Alibaba s3
e) Edit existing remote
n) New remote
d) Delete remote
r) Rename remote
c) Copy remote
s) Set configuration password
q) Quit config
e/n/d/r/c/s/q> e
[Alibaba]
type = s3
provider = Alibaba
env_auth = false
endpoint = oss-cn-hongkong.aliyuncs.com
acl = public-read-write
--------------------
Edit remote
** See help for s3 backend at: https://rclone.org/s3/ **
Value "provider" = "Alibaba"
Edit? (y/n)>
y) Yes
n) No (default)
y/n> n
Value "env_auth" = "false"
Edit? (y/n)>
y) Yes
n) No (default)
y/n> y
Get AWS credentials from runtime (environment variables or EC2/ECS meta data if no env vars).
Only applies if access_key_id and secret_access_key is blank.
Enter a boolean value (true or false). Press Enter for the default ("false").
Choose a number from below, or type in your own value
1 / Enter AWS credentials in the next step
\ "false"
2 / Get AWS credentials from the environment (env vars or IAM)
\ "true"
env_auth> 1
Value "access_key_id" = ""
Edit? (y/n)>
y) Yes
n) No (default)
y/n> y
AWS Access Key ID.
Leave blank for anonymous access or runtime credentials.
Enter a string value. Press Enter for the default ("").
access_key_id> Enter the Alibaba Cloud OSS ID obtained here
Value "secret_access_key" = ""
Edit? (y/n)>
y) Yes
n) No (default)
y/n> y
AWS Secret Access Key (password)
Leave blank for anonymous access or runtime credentials.
Enter a string value. Press Enter for the default ("").
secret_access_key> Enter the Alibaba Cloud OSS secret key obtained here
Value "endpoint" = "oss-cn-hongkong.aliyuncs.com"
Edit? (y/n)>
y) Yes
n) No (default)
y/n> n
Value "acl" = "public-read-write"
Edit? (y/n)>
y) Yes
n) No (default)
y/n> n
Value "storage_class" = ""
Edit? (y/n)
y) Yes
n) No (default)
y/n> n
Edit advanced config? (y/n)
y) Yes
n) No (default)
y/n> n
--------------------
[Alibaba]
type = s3
provider = Alibaba
env_auth = false
endpoint = oss-cn-hongkong.aliyuncs.com
acl = public-read-write
access_key_id = Alibaba Cloud OSS ID
secret_access_key = Alibaba Cloud OSS secret key
--------------------
y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d> y
At this point, the Rclone connection configuration for Alibaba Cloud OSS is complete. Connecting to Google Drive and other storage is similar.
5. Script Modification#
Add the following line to the end of the backup script:
rclone copy /path/backup Alibaba:BucketName
Where /path/backup represents the directory of the data backup, Alibaba:BucketName where Alibaba is the remote name created during the rclone operation, and BucketName is the name of your Alibaba Cloud OSS bucket.
If you want to automatically sync data to Alibaba Cloud OSS regularly, you can type crontab -e in the terminal, and then enter:
0 18 * * 5 /bin/bash /root/jiaoben/backup.sh
Where: 0 18 * * 5 means executing the following command every 7 days at 6 PM; root bash means executing the bash command as root; /path/backup.sh represents the location where the backup script is stored; /path/wwwroot/domain.com represents the root directory of the website.
